V-Shape Dish Rack

Description

V-Shaped Plate Storage Inside a Cabinet

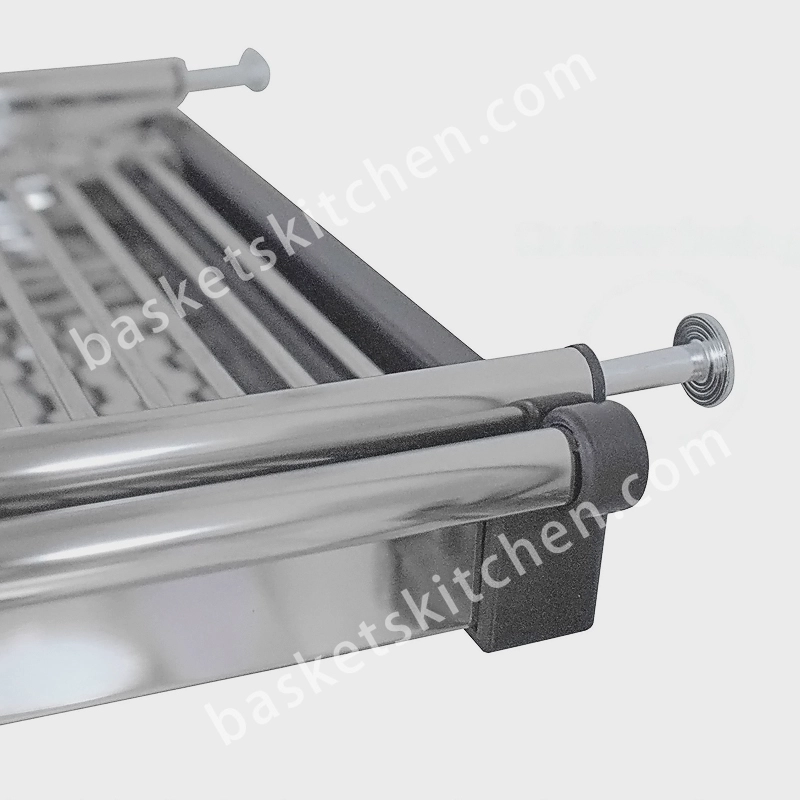

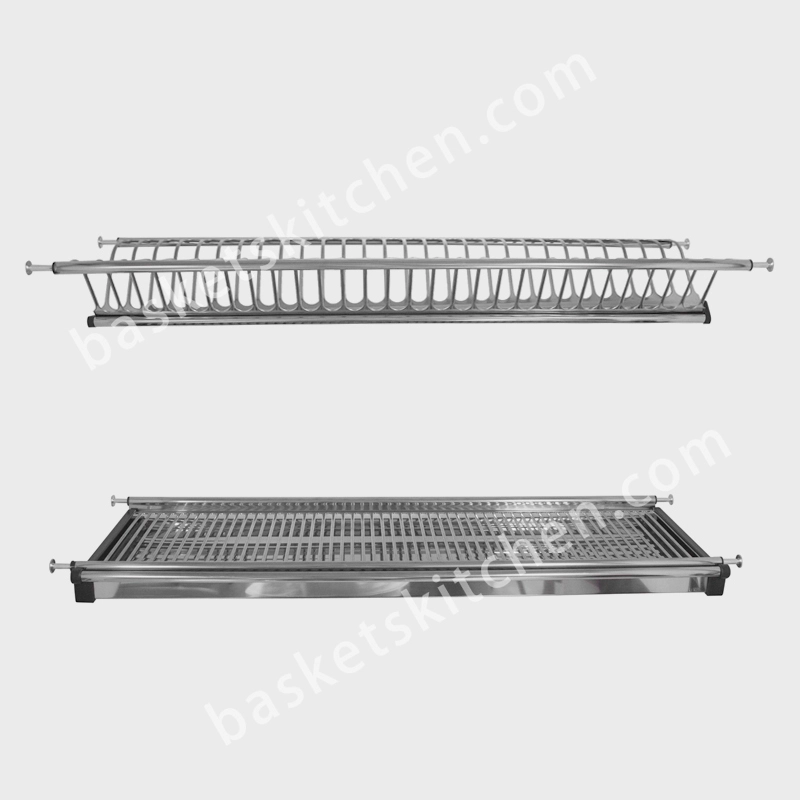

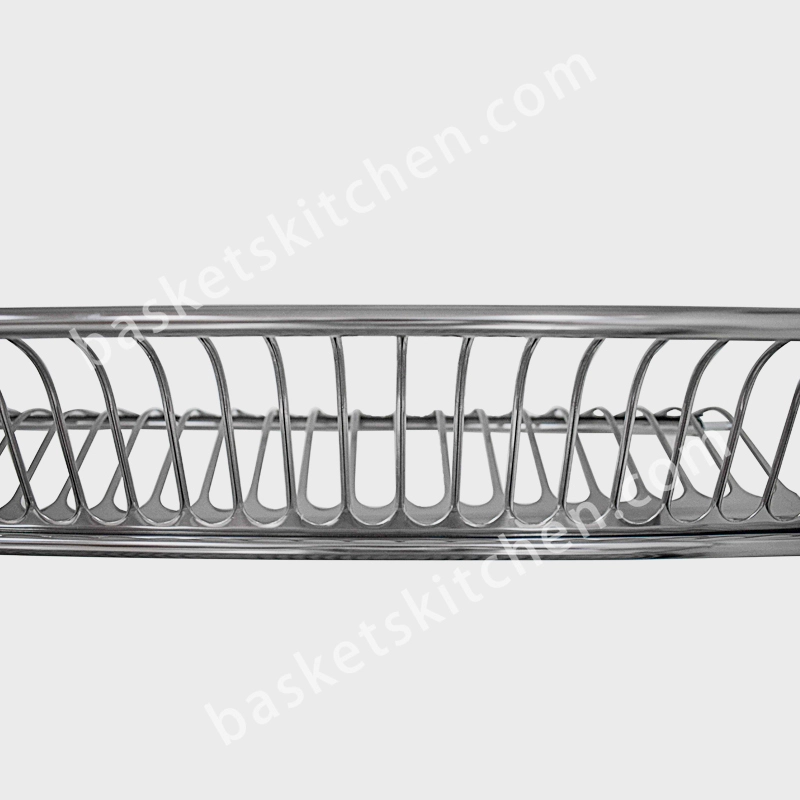

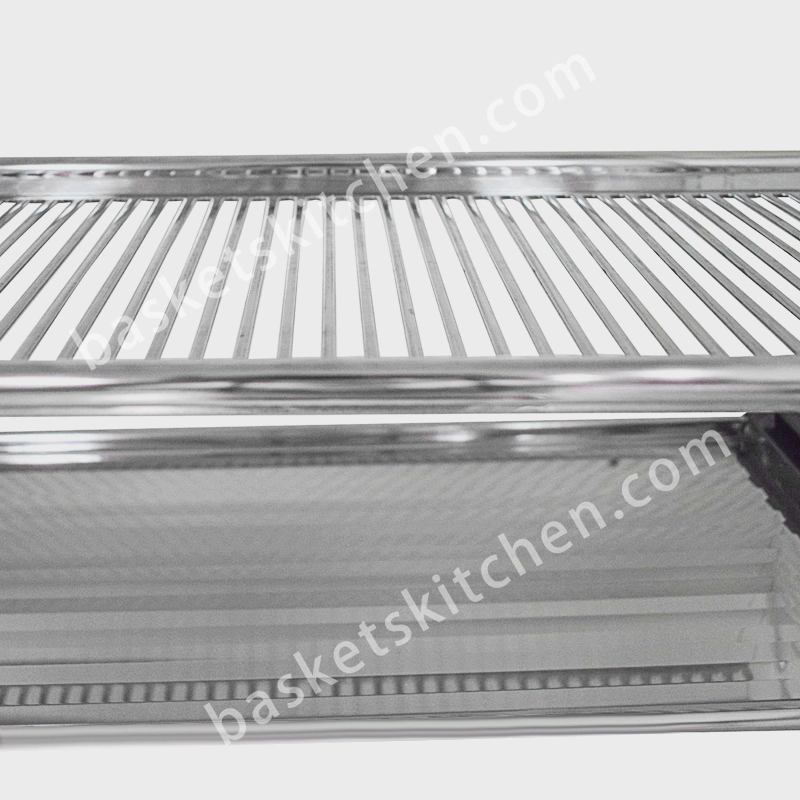

This cabinet dish rack pairs an upper wire plate rack with a lower shelf and tray. The upper rack has angled supports for upright plates; the lower shelf provides a separate area for other dishes. The product photographs show side mounting rods for cabinet installation, rather than a freestanding countertop frame.

For cabinet makers and kitchen-hardware distributors, check plate diameter, rim shape and the spacing between supports on a sample. Confirm that loaded plates clear the cabinet opening and the space above the rack, and that users can lift them out without catching the shelf or door.

Choose the Cabinet Size and Mounting Arrangement

The parameter table lists 600, 700, 800 and 900 mm cabinet-width options. Request the rack dimensions and installation drawing for the selected option: nominal cabinet width is not the same as the clear internal opening.

• Provide internal cabinet width, depth and height, panel thickness and hinge positions.
• Agree the vertical spacing between the plate rack and lower shelf for the intended dishes.
• Confirm mounting hardware, fixing positions and the permitted adjustment range.
• Check the tray dimensions, removal direction and access for emptying and cleaning.
• Request the load rating and test conditions for each shelf and its mounting assembly.

Material and Supply Specification

The listed material is Steel or Stainless Steel. Specify the required grade and finish when requesting a quotation, and confirm the materials of the racks, tray and mounting parts separately. Approve a sample against the final component list before ordering in bulk.

Send this product link, cabinet drawing, chosen width, quantity and destination for a wholesale or OEM enquiry. Include packaging, spare mounting parts and installation-instruction requirements. Check carton dimensions and protection for the plate supports and tray when planning shipment.
