Two-Tier Base Cabinet Pull-Out Basket

Description

Two Storage Levels on a Pull-Out Frame

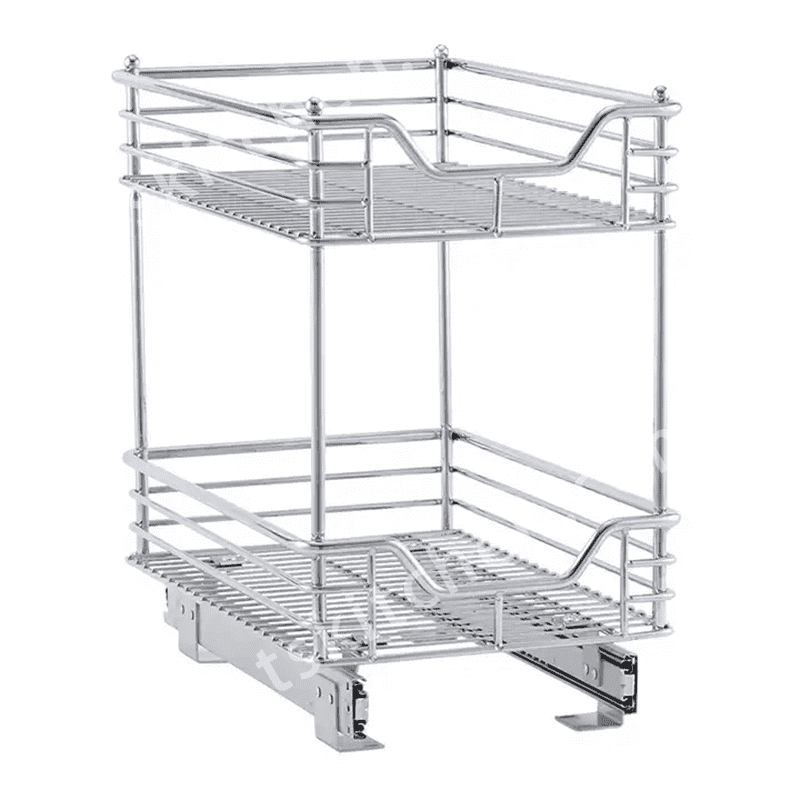

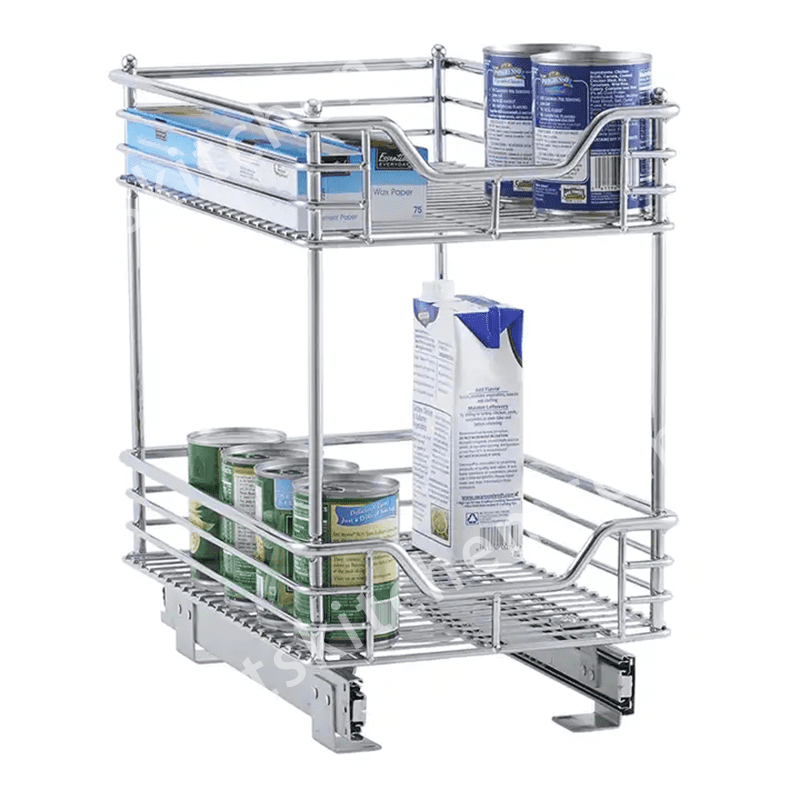

This two-tier base cabinet pull-out basket places two rectangular wire baskets on a frame with slides beneath the lower basket. The installation photographs show the assembly extended through a hinged cabinet doorway, with a drawer above it. The upper and lower baskets provide separate spaces for packaged groceries and other cabinet contents.

For cabinet makers, importers and hardware distributors, this product is a straight pull-out option to evaluate for a base cabinet. For a blind-corner layout, confirm that the required storage area can be reached by a straight pull-out before selecting this frame.

Check the Opening and the Full Pull-Out Path

The specification table lists cabinet widths from 150 to 500 mm. These are listed cabinet sizes, not confirmed basket dimensions. Request the drawing for the selected version before matching it to a cabinet schedule.

• Measure the clear opening after allowing for hinges and the open door.
• Check internal depth and height, including any drawer or rail above the basket frame.
• Confirm the basket width, depth, spacing between levels and usable height for bottles or cartons.
• Request the fixing positions for the bottom slide assembly and confirm the required cabinet-base support.
• Check the slide travel and access to the rear of both baskets with the door open.

Considering an Under-Sink Installation?

Send a drawing showing the sink bowl, waste trap, water lines and valves. The pictured baskets have rectangular storage areas with no visible pipe cut-out. Check clearance with the basket both closed and extended; fitting inside the cabinet when closed does not establish that the full pull-out path is clear. Confirm maintenance access to plumbing before choosing this arrangement.

Agree the Wholesale Specification

The material table lists Steel or Stainless Steel. Specify the basket, frame and slide materials separately, together with the required finish. Ask for the permitted load per basket and for the complete assembly, the relevant test conditions, and whether the selected slide includes closing control. The photographs alone do not establish a stainless grade, corrosion rating or load capacity.

For a quotation, send this product link, cabinet drawing, selected size, order quantity and destination through Make an enquiry. Confirm the supplied components, installation instructions, packaging and spare-parts requirements, then check a sample in the intended cabinet before bulk ordering. For other layouts, compare our base cabinet basket range and blind-corner storage range.
